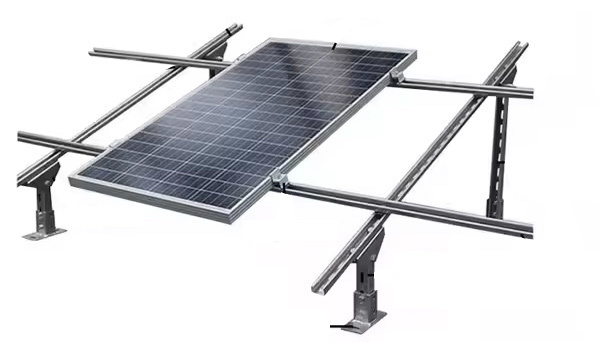

U-type Steel Mount/Bracket

Solar ground mounting bracket is strictly designed according to the maximum wind speed, maximum snow load, solar panel specifications and other design schemes.

Email:

helena@eaststeelpipe.com

Phone:

Products Category

keyword：Ground Mount

Description

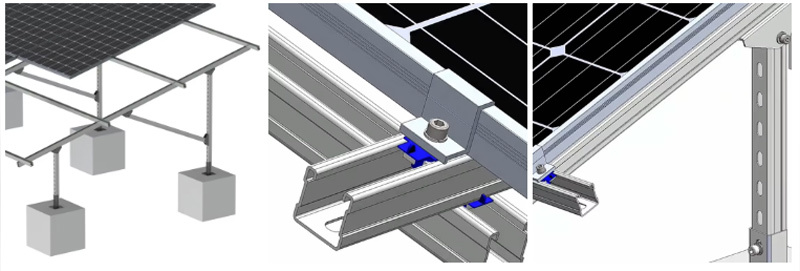

Solar ground mounting system is manufactured in zinc-mg-aluminum steel plates and can be used in a variety of conditions using concrete foundations and ground screws for different panel arrays. Using zinc magnesium aluminum steel structure, this solar mount type has a huge market advantage.

1. 100% high strength zinc magnesium aluminum steel plate, good corrosion resistance, but also automatic repair.
2. High competitiveness on material cost.
3. Easy and fast installation with unique design.
4. Good processing performance, environmental protection and long service life.
5. The coating weight is less, and the simplified process eliminates the hot dip plating after forming.

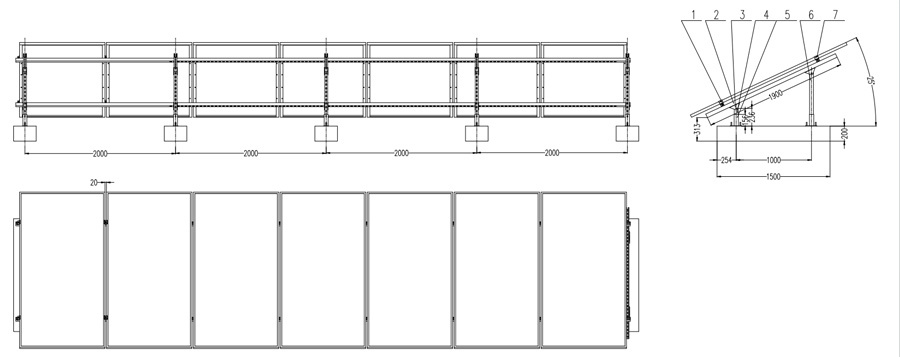

Fixed support 1PX25 Installation diagram - Model

1、Purlin
2、Inclined beam
3、Triangle Connetor
4、front pillar
5、Column base
6、Rear pillar
7、End clamp

Technical Parameter

Install Site	Open Terrain
Tilt Angle	Depends
Max Snow Load	1.5KN/m²
Max Wind Speed	42m/s
Module Orientation	Landscape or Portrait
Foundation Type	Concrete Base or Screw Pile
Material	ZAM Steel/HDG
Warranty	12 years quality guaranty
Place of Origin	Shandong, China
Service Life	25 years

Video center

Zinc aluminum magnesium(ZAM) Steel Coil Advantage

Enterprise strength

Weifang East Steel Pipe Co., Ltd.

Workshop

Office display

Production building

Warehouse display

Honor and qualification

Weifang East Steel Pipe Co., Ltd.

Customer case

Weifang East Steel Pipe Co., Ltd.

Quality assurance

Weifang East Steel Pipe Co., Ltd.

Q&A

Q: What's your delivery time?

A: For stock：3days, 12days for new production

Q: Can you send the samples?

A: Yes, free samples for your test.

Q: Are you manufacture?

A: Yes, Our production experience is more than 12 years.

Q: Do you have OEM service?

A: Yes, we accept OEM service.

Q: How can I get the best price?

A: Send an inquiry to us and a professional will quote you.
